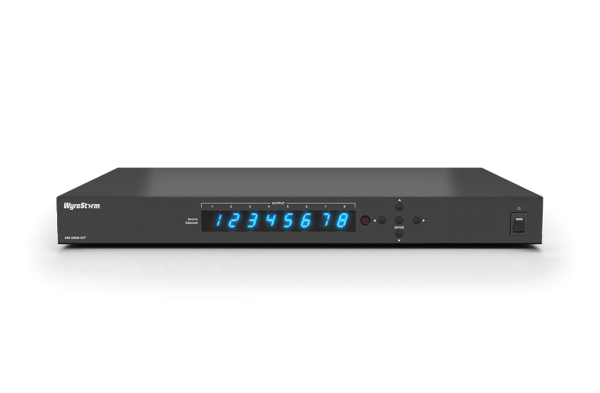

WyreStorm MX-0808-KIT v2

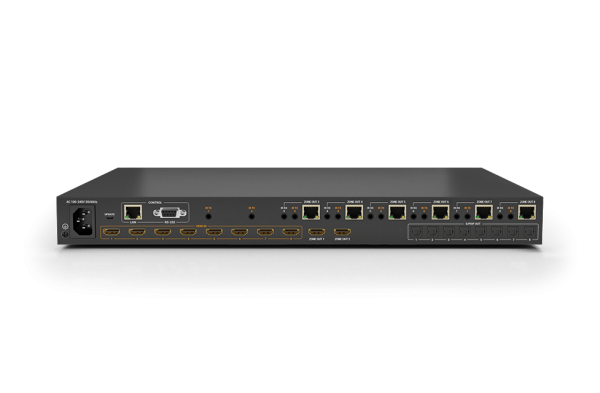

The MX-0808-KIT v2 gets a make over, sharing many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/over–hanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.

4K UHD AND HDR SUPPORT

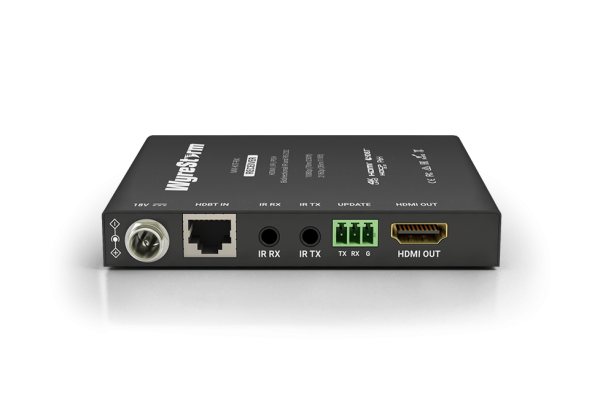

Small in price yet big on specification, this 8x8 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included receivers up to 35m/115ft.

DE-EMBEDDED AUDIO

With audio functionality to match its video capability, the 8×8 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR’s or downmix to stereo using the EXP-CON-DAC-D.

CEC TRIGGERING

Working automatically on signal presence or triggered via the API, this 8×8 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

A/V MUTE FUNCTION

Certain applications in the residential, education and commercial markets don’t always require a source to be routed through to an output. The 8×8 kit makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.
