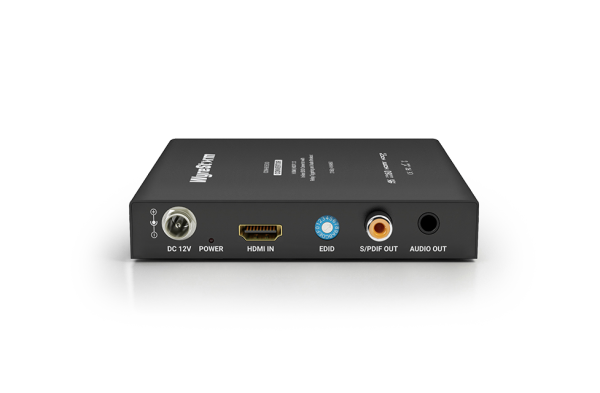

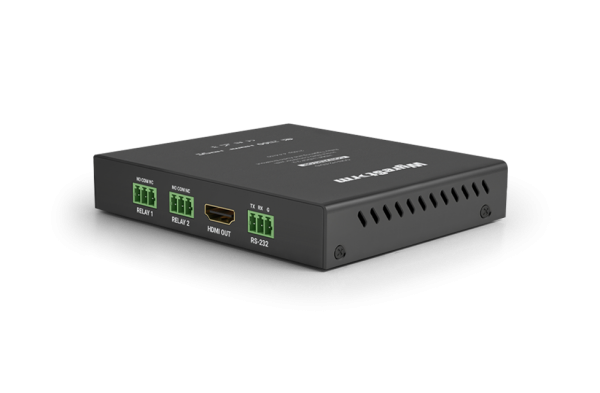

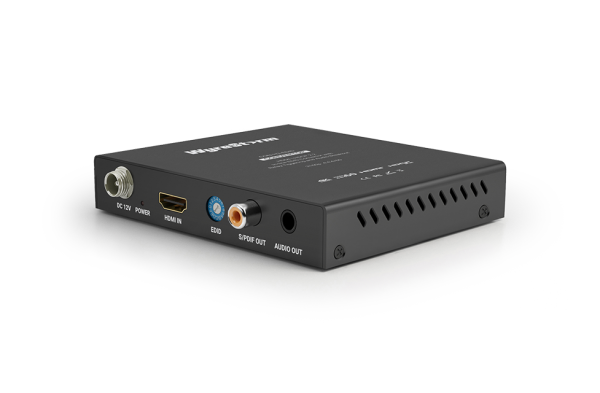

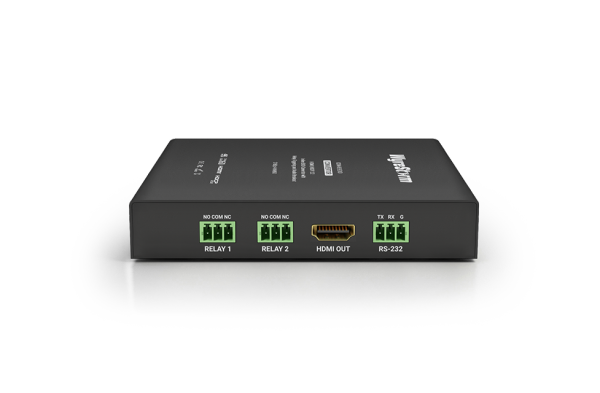

WyreStorm CON-H2-EDID

A multi-purpose installer tool, the CON-H2-EDID can perform a variety of tasks within an install. As an in-line device, it can act as an EDID manager to request specific content from a source, or as an audio de-embedder, extracting HDMI source audio via the S/PDIF or stereo mini-jack ports. Additionally, it can be a micro zone controller, sending CEC and RS-232 power triggers to connected projectors or screens and from its two relay ports, and can trigger devices in the zone using signal presence logic.

IN-LINE EDID EMULATOR

In a legacy installation scenario where EDID is not being communicated properly, the CON-H2-EDID can be connected in-line after the source device and using either a built-in or uploaded EDID file, can ensure the correct content is requested from the source.

AUDIO DE-EMBED

Compatible with any current content thanks to its 18Gbps and HDCP2.2 support, it can be placed in-line after any source device and extract the incoming audio via the 3.5mm jack or coaxial S/PDIF port.

MICRO ZONE CONTROLLER

Working on signal presence logic, the CON-H2-EDID can trigger a connected screen or projector on/off via both CEC or RS-232; the RS-232 commands can be entered via the configuration s/w tool that is part of WMS v1.6. Additionally, at the same time, it can trigger 3rd party motors (projector screens, lifts, blinds & curtains) via the built-in relays.

HDMI2.0 MAXED OUT

Sporting an 18Gbps HDMI input, the CON-H2-EDID can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz.

5 YEAR WARRANTY

This WyreStorm Pro AV product comes with a 5 Year Warranty.
