SIMPLIFIED TXIWKT

HDMI/USB-C Over Category Cable In Wall Kit.

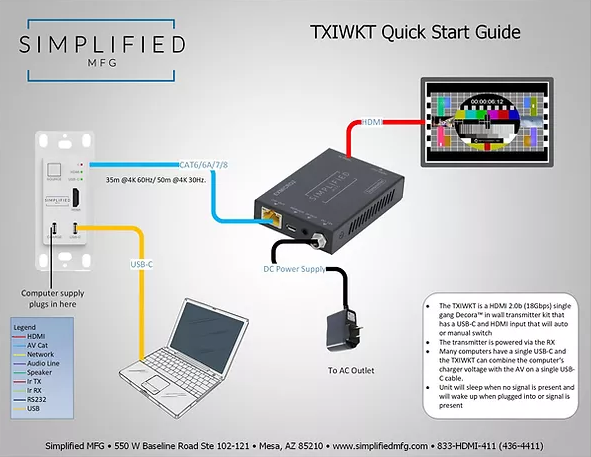

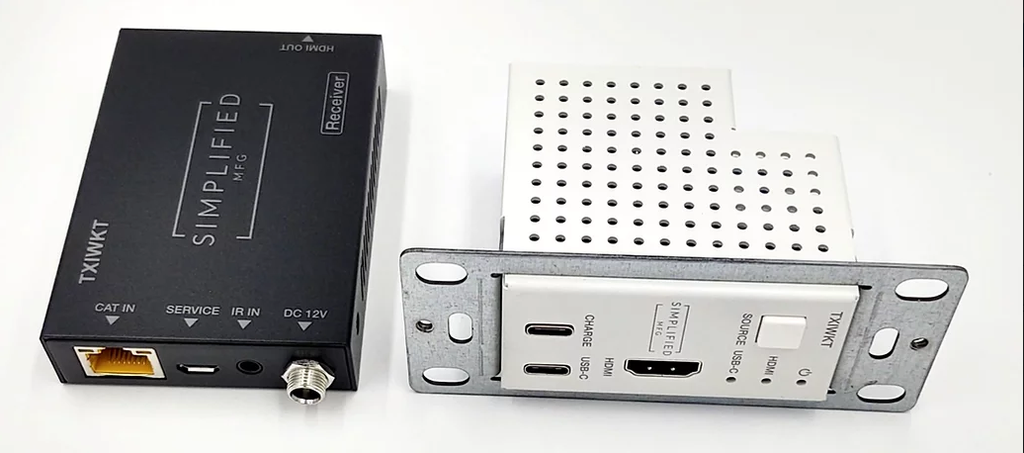

The TXIWKT is a kit consisting of a single gang Decora wall plate with a small footprint RX.  Technology used in the TXIWKT is about 3 times more efficient than the typical extender.  This means less heat, less energy used, and greater reliability.   The TXIWKT has an HDMI Type-A input as well as a USB-C input.  There is also a USB-C charging port.  You simply connect your laptop power supply to the USB-C charge port and the power is then passed through the AV connection while presenting, back to your laptop or tablet.  The sources are selected by a button on the front of the TX.  The RX powers the TX device.  HDMI 2.0b is supported at @60Hz for 35 meters and at 30Hz, up to 50m.  Perfect for K-12, higher ed, board room, podiums, and other applications where a HDMI port needs to be accessed.

• Supports POE (Power Over Ethernet), the matched RX device powers the TX device.

• Transmission distance: over CAT6/6A cable.

--50 meters:

• 4K X 2K @30Hz36bit.

--35 meters:

• 4K x 2K @ 60Hz.

• Supports the entire HDMI 2.0b format at 60Hz/35m, up to 30Hz. at 50m.

• Compliant with the USB-C Video format.

• Single Gang Decora.

• RX is about the footprint of a credit card and about half an inch thick.

• Supports all HDMI audio formats.

• 3-Year Warranty.
