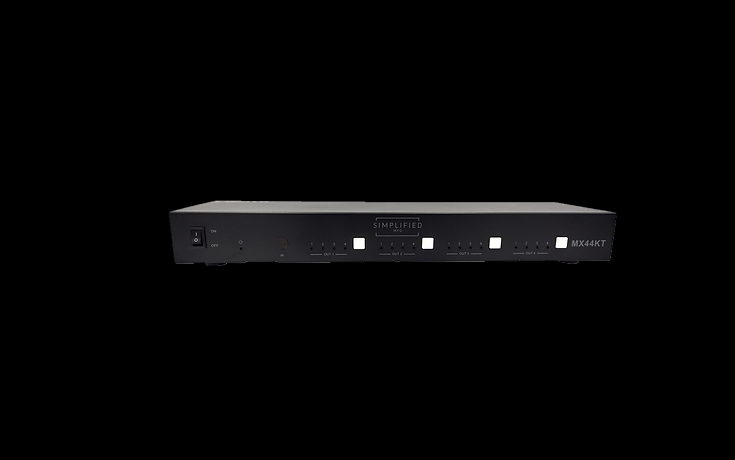

SIMPLIFIED MX44KT

KIT MATRICIAL HDMI HDBASET 4X4 , 70M 1080 - 50M 4K


    Esta combinación no existe.




    Share this product:

    Scaling 50m 4K 4x4 HDMI Matrix Kit over CAT5e/6/7.

    The MX44KT is a Scaling HDMI 2.0b HDBaseT 18Gbpsgbps 4x4 HDMI Matrix with included 70m HDMI 1080p (50m 4K) over category cable receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel). Each output can scale independently.  Output 1 can be one resolution without affecting the resolution of the other outputs.  The MX44KT supports the transmission  4Kx2K@60Hz (4:4:4), and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The compact receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 165ft/50m(4K) for multi-room connectivity.  This matrix also supports HDR8/10/10+/DolbyVisiontm (HDMI output only, category output supports up to HDR10+).  Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. The innovative web GUI can be used to set scaling, and EDID settings for easy setup.

    • Supports  RGB, YCbCr 4:4:4, YCBCr 4:2:2 and xvYCC video formats with deep color.

    • Supports video format up to 4k2k@30Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.

    • Supports HDR8/10/10+/DolbyVision pass through (DolbyVision is only on HDMI output, not the UTP).

    • Auto Scaling on each channel to eliminate unlike resolutions from affecting the resolutions of superior displays.

    • Supports high resolution VESA mode video format up to QSXGA@60Hz.

    • Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby+, Atmos, & DTS-X.

    • Supports transmission distances up to 230ft/70m @1080p and 165ft/50m @ 4K through CAT5e/6/7 cable.

    • LED's at Matrix and RX indicate connection quality of HDMI and category cable connections.

    • RX Devices are powered by the matrix.

    • Supports wideband IR (30-60Khz), IR transport from RX to matrix can control both the matrix and the sources.

    • Support simultaneous category and HDMI outputs that scale together by channel.

    • Support RS-232, remote control, on-panel control and TCP/IP Control.

    • Support smart EDID management with live function via innovative web GUI.

    • 3-Year Warranty.

    No Specifications
