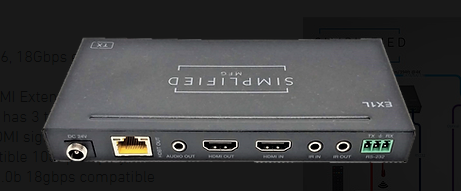

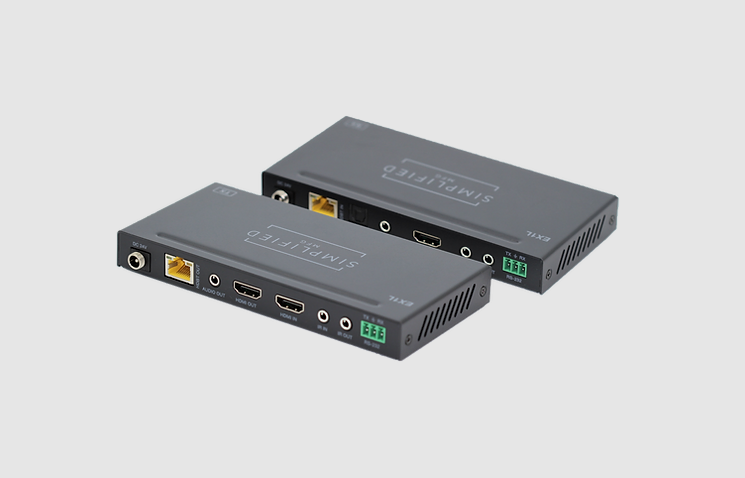

SIMPLIFIED EX1L

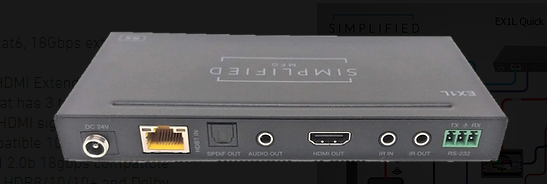

The all new EX1L 18Gbps HDMI Extender is a replacement for the EX1 that has 3 times the distance!  The EX1L can extend your HDMI signal over 492ft/150meters to a compatible 1080p display, 394ft/120meters to a HDMI 2.0b 18gbps compatible display. The EX1L supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal.  There are also audio breakouts on both the transmitter and the receiver.

Primary Use: This is the workhorse/day to day extender that supports the entire HDMI 2.0b format, has 12V IR for ease of installation with third party control, and audio breakouts for easy integration with audio systems.

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant.

• Video resolutions up to 4K2K@50/60Hz (YUV444).

• HDR8/10/10+ pass through.

• Dolby Vision™ pass through.

• Supports HDMI High Bit Rate(HBR) audio pass through.

• Supports CEC bypass.

• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed).

• Bidirectional 12V Infrared control signal together with the HDMI signal.

• Transfer Bidirectional RS232 control signal together with the HDMI signal.

• Transmission distance: Over CAT6 cable.

--150m/ 492 ft.:

• 1080P @60Hz36bit; 3D1080P@30Hz36bit;

--120m/394 ft.:

• 4K x 2K@30Hz@24bit.

• 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

• 3-Year Warranty.
