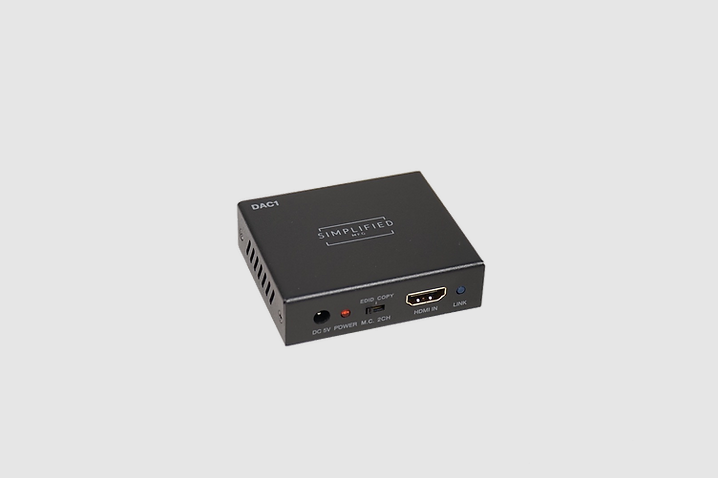

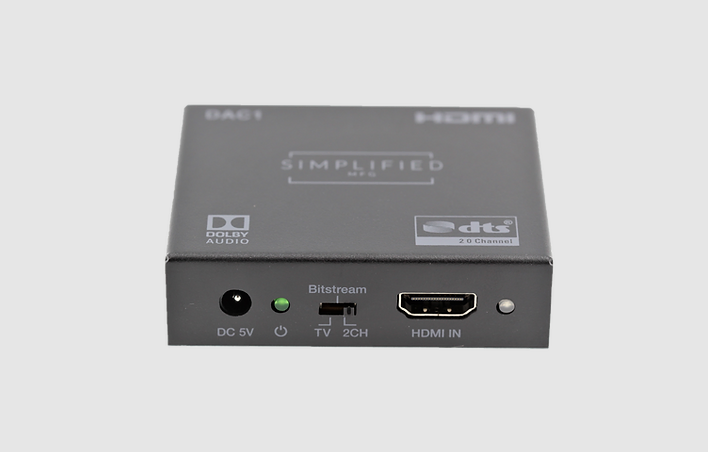

SIMPLIFIED DAC1

HDMI 18Gbps Audio DownMixing Device that supports HDR/DolbyVision.

The DAC1 HDMI 18Gbps Audio Extractor extracts audio signals up to an including Dolby+/Atmos and DTS and downmixes the signal to stereo from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision passthrough. HDCP 2.2 and CEC bypass are supported.

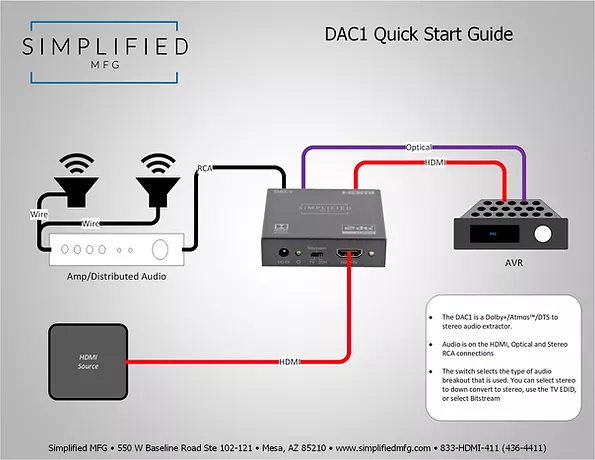

Primary Use: to extract audio from a media player and then convert the multichannel audio to stereo.

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant.

• Video resolutions up to 4K2K@50/60Hz (YUV444).

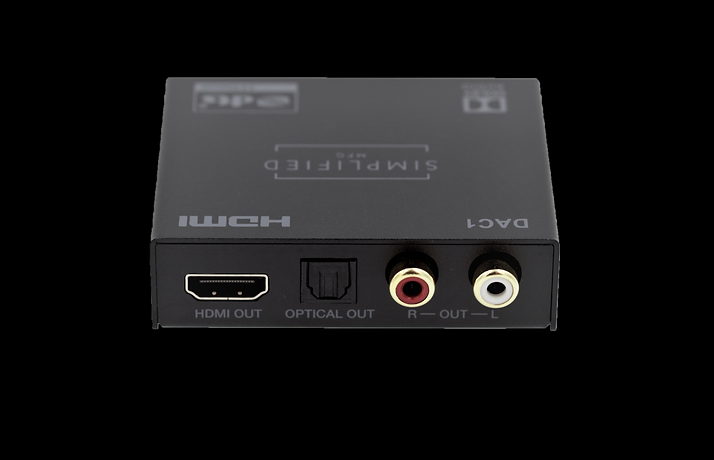

• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio.

• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH.

• Supports HDMI High Bit Rate(HBR) audio pass through.

• Audio sample rates up to 192kHz.

• HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through.

• Supports CEC bypass.

• 3-Year Warranty.
