SCP CAT6A-U/FTP-BL-ETL
CAT6A F/FTP- 10GBASE-T, 600 MHz 23 AWG SOLID BC, 4PR, F/FTP, ANSI/TIA 568-C.2, ISO/IEC 11801 CLASS Ea, ETL CMR, PVC JKT- BLUE
Share this product:
SCPs Cat6A U/FTP cables are specifically designed to support 10GBASE-T high-speed data network applications. With individual foil shielded pairs, this design maximizes the 10GBASE-T cable performance:
Maximum pair separation increases key electrical performance parameters.
Eliminates both internal and external alien crosstalk.
Increases CAT6A performance headroom and outperforms CAT6A UTP cables.
Provides excellent signal isolation.
Superior EMI/RFI protection.
Increased data security.
SCP CAT6A-U/FTP cables exceed 10GBaseT performance standards for: ANSI/TIA 568.2-D Category 6a; ISO/IEC 11801 Class Ea; and EN 50173-1:2011 Class Ea.

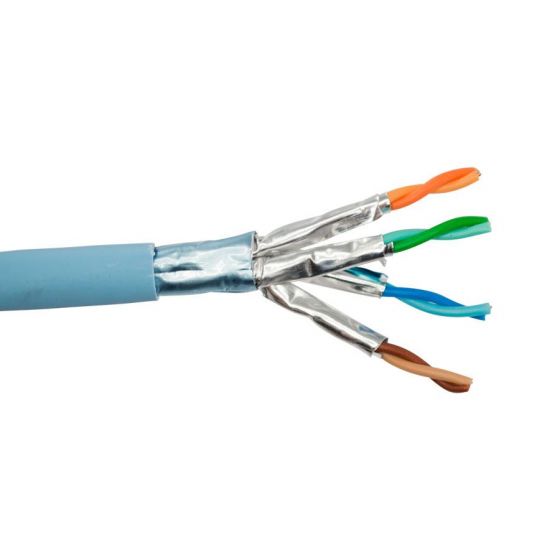

Each CAT6A-U/FTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with each pair AL foil shielded. CAT6A-U/FTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.
The SCP CAT6A-U/FTP-BL cables are packaged on a 1000ft/305M spool/drum with a Blue PVC Jacket.
