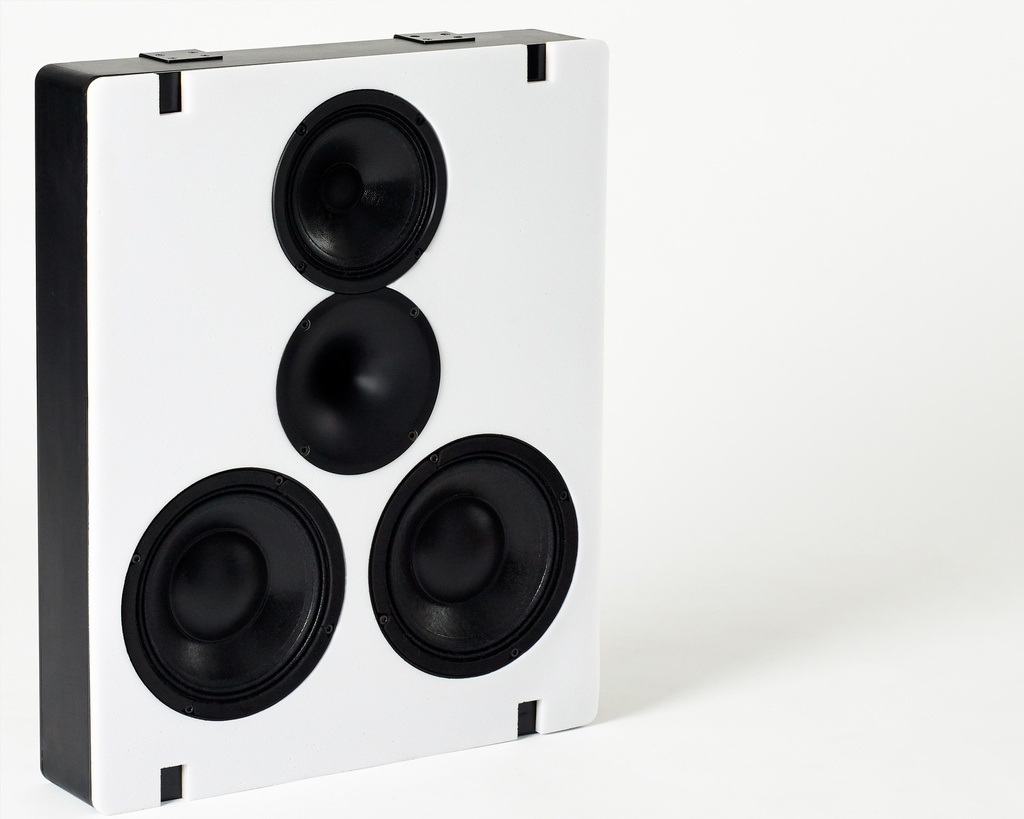

Audio Excellence Vertex 3

The Vertex 3 is a high power / high sensitivity loudspeaker delivering an astonishing sound pressure level for its compact size.

• Dimensions: 600 x 550 x 101 mm

• Weight: 25.5 kg

• Connector:

  • Speakon 4

  • 3 way active/passive with series passive mid-high crossover

• Frequency response: 100 Hz-22 kHz

• Impedance: 4 Ω bass. 8 Ω mid-high

• Bass units: 2 x 8” cone drive units

• Midrange unit: 1x 6.5” High sensitivity cone drive unit

• HF unit: 1 x 1” compression drive unit on a 90° conical waveguide

• Active crossover: 500 Hz, Bessel 4th order

• Sensitivity: 96 dB/1W/1m

• Power handling: 500 W

• Max. SPL @ 1m:

  • 122 dB

  • 105 dB available @ 7m

• Directivity: Conical, 90°

• Option 1: Custom decorative print on frame

• Option 2: In-wall adaptation kit
