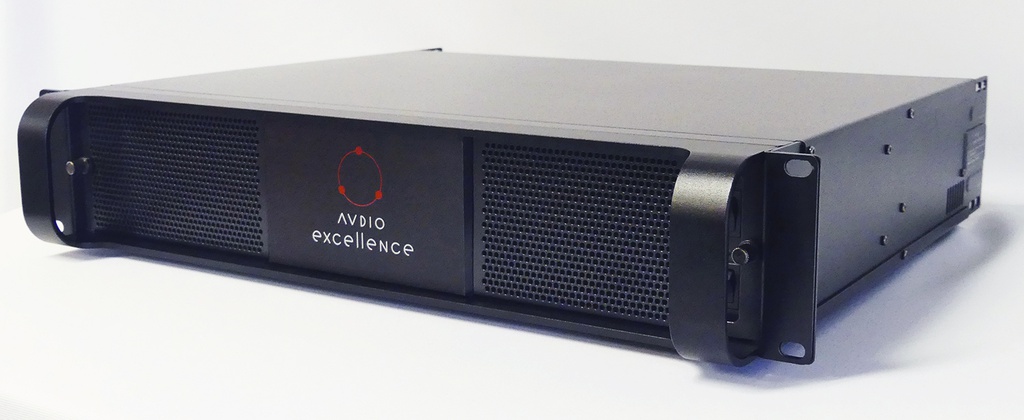

Audio Excellence Quattro 04

 The Quattro 04 power amplifier is a reduced-power version of the Quattro 06. It is designed to be used in smaller systems or for surround/height channels amplification.

• Class: TD

• Channels: 4

• Frequency response: 20 Hz- 25 kHz +/- 0.5 dB

• Signal / Noise ratio: > 110 dBA

• THD 20 Hz-20 kHz @ 1 W: < 0.1%

• Channel separation: > 70 dB

• Cooling: Silent fans

• Trigger: Switchable 12VD.C. trigger input

• Voltage Gain: Selectable from 23 dB to 44 dB

• Input Impedance: 20 kΩ

• Max Power:

  • 4 x 450 W into 8 Ohms

  • 4 x 550 W into 4 Ohms

  • 2 x 1100 W into 8 Ohms in bridge mode

• Height: 2 U

• Output connectors: 4 x Speakon 2
